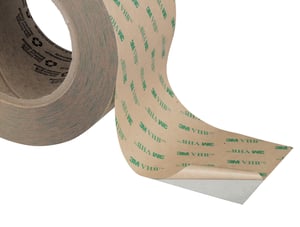

3M 9485PC is an adhesive transfer tape with 3M 350 high performance acrylic adhesive.

adhesive-transfer-tape

The 3M brand is synonymous with innovation and performance and that is exactly what this product delivers.

3M 9485PC is designed for cost effectively joining materials that are smooth, thin and have low residual stress. This adhesive transfer tape provides excellent adhesion to plastics and foams and is widely used in many industries including specialty vehicle, automotive, military, general industrial, appliance, medical and electronics.

3M 9485PC Application Ideas:

  • Nameplate Bonding
  • Decorative Trim Bonding
  • Adhesion to Oily Metals and LSE Plastics
  • Surfaces Exposed to Chemicals Including Gasoline, Oil, Freon, Acids and Alkalis
  • Bonding to Powder Coatings
  • Much More

3M 9485PC is a reliable bonding solution that features high resistance to moisture and solvents, with medium plasticizer and UV resistance. It has operating temperature range between -40 and 450 degrees Fahrenheit. The material provides excellent shear strength which minimizes edge lifting and slippage of parts. 3M 9485 comes in a clear color and works well for sticking to low surface energy plastics and powder coatings.

Converting 3M 9485PC

3M 9485PC can be easily die cut and converted in a cleanroom environment into custom formats depending on your needs.

SlittingStrouse can slit rolls of adhesive transfer tape to custom widths. This provides you bonding tape in the exact width you need for your project. No excess, waste, or cutting necessary for your employees.

Spooling: This unique capability allows Strouse to combine multiple rolls of transfer tape into one large spooled roll or reel. Much like fishing line is neatly wrapped around a reel; spooling neatly wraps tape onto a wider core allowing for longer length rolls of material. This can save you time and money reducing changeovers of rolls while keeping your machines running longer.

Die CuttingThis is the process of cutting a wide roll of tape into a custom shape or usable part for your process. Parts can be cut into different formats to fit seamlessly into your assembly.

Individual piecesAdhesive transfer tapes can be laminated with liner on both sides leaving no exposed adhesive. This means that when parts are die cut they are provided as individual pieces placed inside a bag.

Sheeted Parts – Some assembly processes require multiple shapes or parts of the same material. This is where sheeted parts come in handy. Multiple parts can be cut onto a single sheet ensuring that assemblers will use all of the required parts during assembly. This reduces error in your process as well as the potential for product failure.

Die Cut Parts on a Roll – This is our most popular format for providing die cuts. Custom cut parts can be provided on a liner in the form of a rolled good. This allows for hundreds or thousands of parts to fit on a single roll. This makes application of die cut parts easy and efficient as parts can be removed from the roll and the next part is ready to be peeled and placed.

Tabs or Extended Liners: Die cut solutions are great for hand assembly or automated processes but sometimes removing the backing from an adhesive die cut can be difficult. Strouse simplifies this process by adding a tab to the part or extended liners that make it easy to remove the liner and place the adhesive. This can make tasks easier for your assemblers saving them from the frustration of removing thin liners while saving time and money in the process.
